Yarn Measuring Reel(Yarn Wrap Reel) YG086

Product Information
Brand: INTEKE

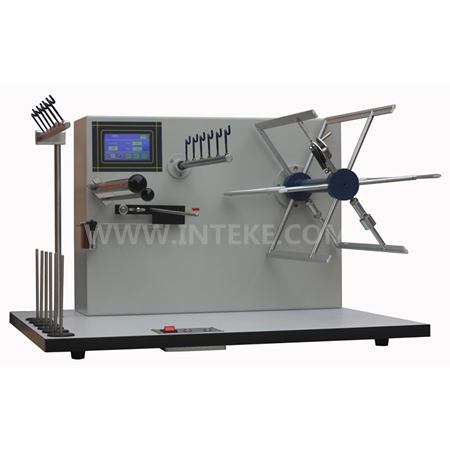

YG086 Yarn Measuring Reel | Professional Yarn Wrap Reel for Textile Industry

Product Overview
The YG086 Yarn Measuring Reel is a precision instrument designed for testing yarn linear density (count) in weaving, knitting, printing and dyeing, garment manufacturing, and textile R&D. Compliant with GB4743-95 standards, this reel ensures accurate measurement of yarn properties for quality control and production optimization.

Key Applications

Weaving & Knitting: Verify yarn consistency for fabric production.

Dyeing & Printing: Ensure uniform yarn density for color application.

Garment Industry: Quality assurance of raw materials.

Textile Labs: Research and development of yarn specifications.

Technical Specifications

1. Testing Spindles: 6 spindles for high-efficiency multi-sample testing.

2. Reel Perimeter: 1000mm ±1mm (ISO-compliant measurement).

3. Adjustable Speed: 30–280 RPM (stepless speed control for diverse yarn types).

4. Programmable Rounds: 2–9999 pre-set winding cycles.

5. Horizontal Travel: 35mm ±0.5mm (precision yarn alignment).

6. Tension Range: 0–100 cN (adjustable single-yarn tensility control).
